• Compare PAX terminals

    See the difference between PAX MiniPOS D190, A50 and A77

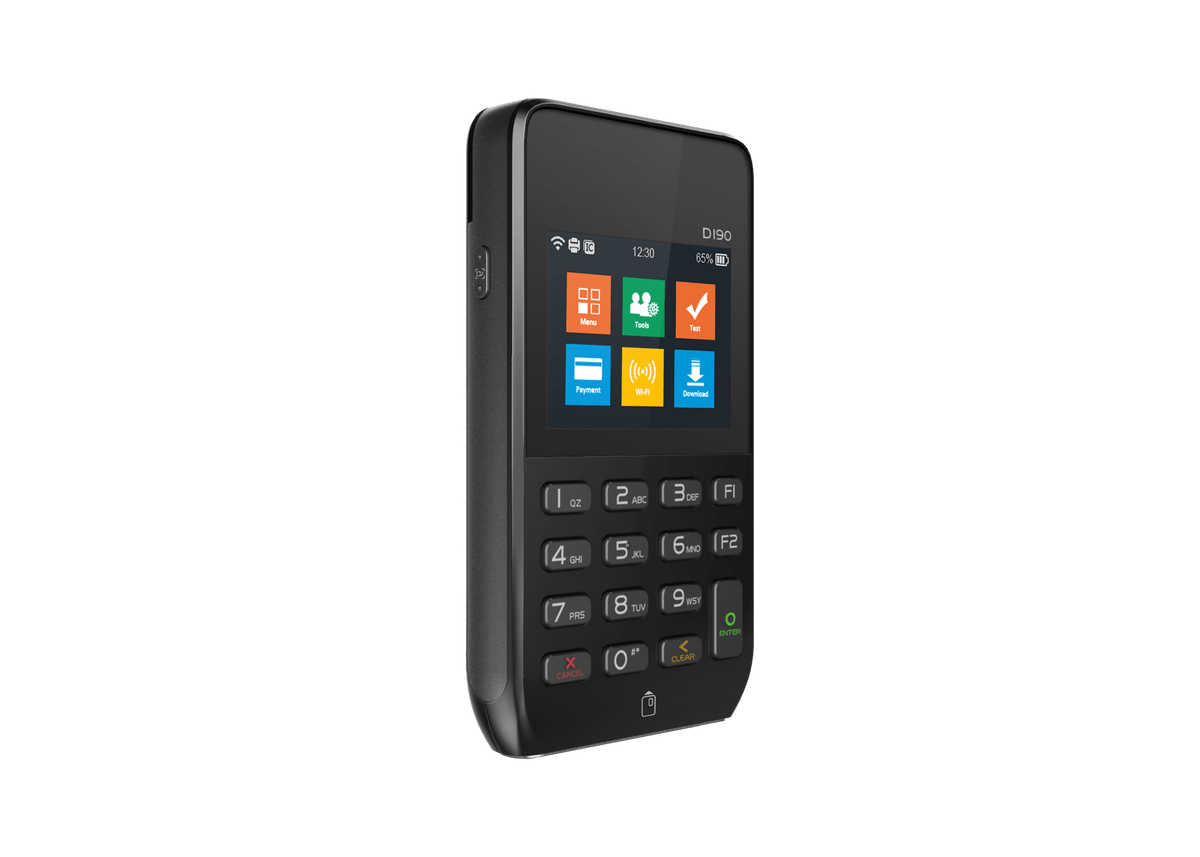

    D190

    broken image

    Prolin

    Operating system

    2.4"

    TFT QVGA 320 x 240 pixels display/touchscreen

    Optional camera

    Optional 0.3MP front camera



    Cortex A7

    4.2 BLE

    Plus WiFi and 4G/3G/2G

    Contactless + Chip & PIN + magstripe

    1900mAh x 3.7V​

    Rechargeable li-on battery

    Power Data

    Standby time: 9 hours
    Sleep time: 85 hours
    # Transactions: >1300
    Field replaceble: Yes
    Recharge time: 2 hours
    # Recharge cycles: >500



    185g

    Height: 129mm

    Width: 71mm

    Depth: 17mm

    PCI PTS 5.x SRED

    Highest payment security standard

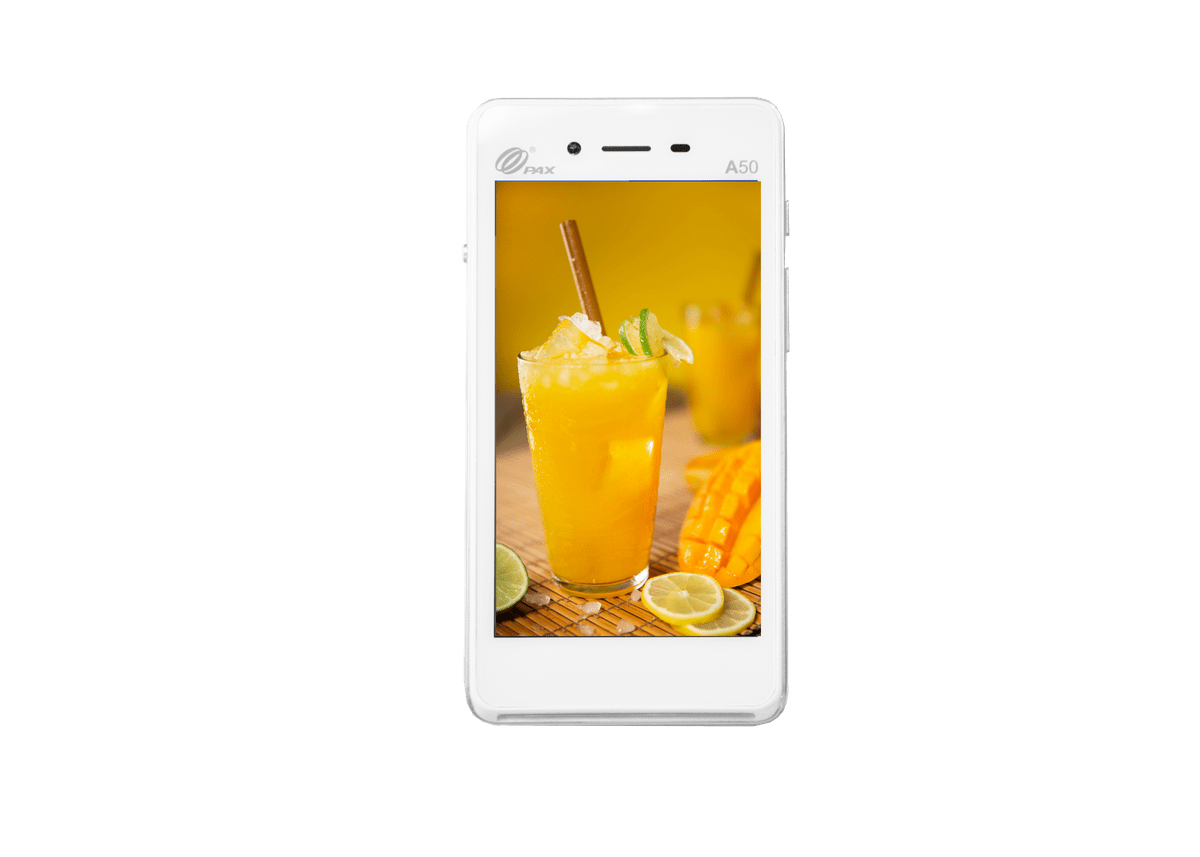

    A50

    broken image

    Android 8.1

    Operating system

    4.5"

    FW 480 x 854 pixels HD colour touchscreen

    Front + rear camera

    2MP rear or optional 2MP front + 8MP auto focus rear camera

    ARM Cortex A53

    4.0 BLE

    Plus 4G and WiFi

    Contactless + Chip & PIN



    2500mAh x 3.8V​

    Rechargeable li-on battery

    Power Data

    Standby time: 14.5 hours
    Sleep time: 185 hours
    Run time (WiFi): 9.5 hours
    Run time (4G): 7 hours
    Field replaceble: No
    Recharge time: 2.5 hours
    # Recharge cycles: >500

    161g

    Height: 138mm

    Width: 69.5mm

    Depth: 14mm

    PCI PTS 5.x SRED

    Highest payment security standard

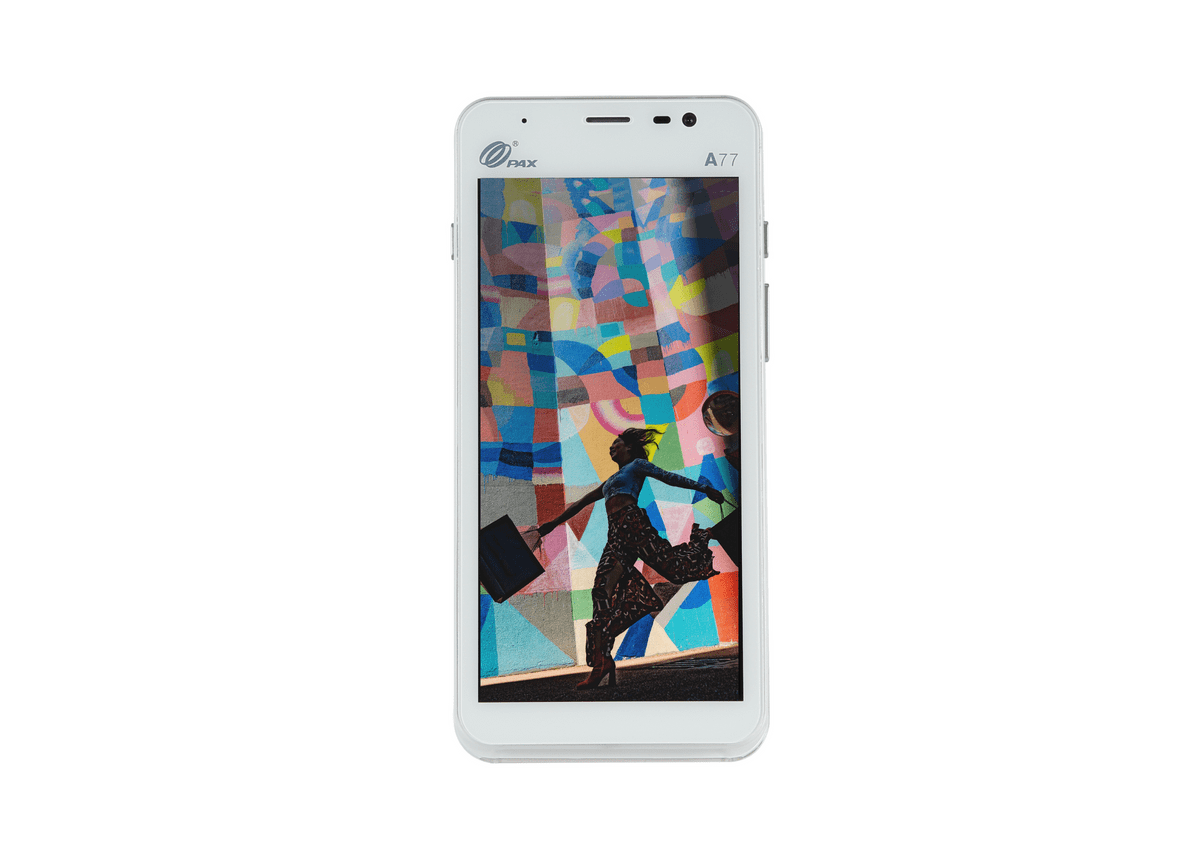

    A77

    broken image

    Android 8.1

    Operating system

    5.5"

    IPS WXGA 720 x 1440 pixels HD colour touchscreen

    Cameras + ProScan

    2MP (5MP) front + 5MP (13MP) auto focus rear, plus infrared scanner

    ARM Cortex A53

    5.0 BLE

    Plus 4G and WiFi

    Contactless + Chip & PIN + magstripe

    5150mAh x 3.8V

    Rechargeable li-on battery

    Power Data

    Standby time: 24.6 hours
    Sleep time: 314 hours
    Run time (WiFi): 16 hours
    Run time (4G): 12 hours
    Field replaceble: No
    Recharge time: 2.5 hours
    # Recharge cycles: >500

    240g

    Height: 158.8mm

    Width: 76.4mm

    Depth: 17.8mm

    PCI PTS 5.x SRED

    Highest payment security standard
